Liquid crystals are a remarkable state of matter that blur the lines between solids and liquids. While they flow like a liquid, their molecules retain a level of order and alignment akin to a solid. This unique duality gives liquid crystals exceptional optical and mechanical properties, making them a cornerstone of modern technology, particularly in display systems. From the vibrant screens of smartphones to the precision of digital watches, liquid crystals power a significant portion of the devices we use daily. But what exactly are liquid crystals, and how do they enable such groundbreaking technologies? In this article, we dive deep into the fascinating world of liquid crystals, exploring their properties, types, and applications, while unraveling the science behind their transformative role in display technology.
What Are Liquid Crystals?

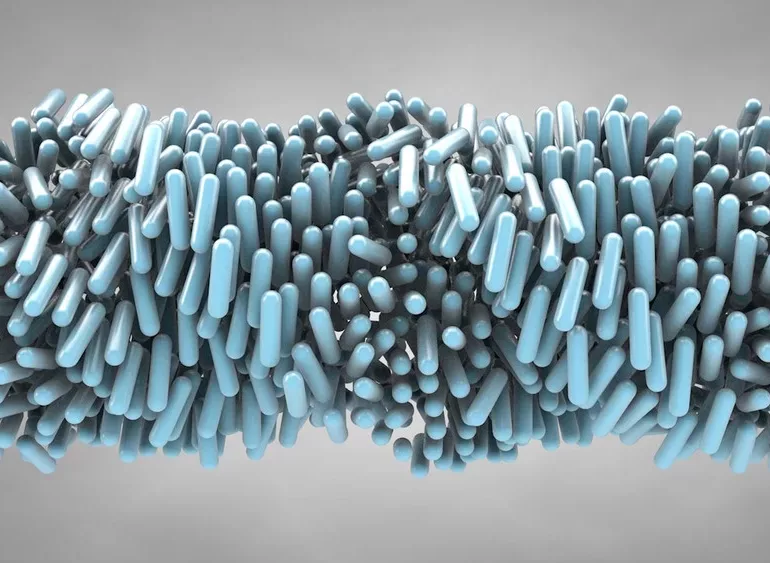

Liquid crystals are a distinct phase of matter that exists between the liquid and solid states, known as a mesophase. Unlike a traditional liquid, where molecules move freely and randomly, liquid crystals have molecules that exhibit a partial degree of order. This ordering allows the molecules to align in specific directions, creating unique patterns and behaviors while maintaining fluidity.
This combination of structure and fluidity makes liquid crystals highly versatile, enabling them to respond to external stimuli such as electric fields, temperature changes, or mechanical forces. Their ability to change molecular alignment under these conditions is the key to their functionality in devices like displays, optical sensors, and smart materials.
How Liquid Crystals Work
Liquid crystals are the foundation of Liquid Crystal Display (LCD) technology, which has become ubiquitous in modern life. LCDs work by manipulating light as it passes through layers of liquid crystals sandwiched between polarizing filters and electrodes. The liquid crystal layer’s orientation controls the polarization and intensity of light, allowing specific regions of the screen to light up or darken.
The process begins with a backlight, usually made of LEDs, that emits light through the first polarizing filter. The liquid crystal molecules, aligned in a specific configuration, rotate the light’s polarization. When an electric field is applied to a specific pixel, the molecular alignment of the liquid crystal layer changes, altering how the light passes through the second polarizer. This selective control creates the pixels that form images and text on the screen.
The Types of Liquid Crystals
Nematic Liquid Crystals
Nematic liquid crystals are the most commonly used type in display technology. In this phase, the molecules are aligned in the same direction but can move freely within the plane. This alignment is highly sensitive to external electric fields, making nematic liquid crystals ideal for LCDs. Their quick response time and ease of manipulation enable smooth transitions in images, making them the backbone of modern screens.
Nematic crystals are also known for their role in advanced technologies like in-plane switching (IPS) displays, which improve viewing angles and color accuracy by allowing the molecules to align parallel to the screen’s surface.
Smectic Liquid Crystals
Smectic liquid crystals are more structured than nematic crystals. Their molecules are arranged in layers, with each layer maintaining a specific alignment. This layered structure offers greater stability, making smectic liquid crystals suitable for applications requiring precision, such as sensors and specialized optical devices.
Although not as widely used in consumer displays as nematic crystals, smectic liquid crystals are crucial in niche technologies where stability and detailed molecular control are paramount.
Cholesteric Liquid Crystals
Cholesteric, or chiral nematic, liquid crystals have a helical structure, where the molecules form spiral patterns. This unique configuration allows them to reflect specific wavelengths of light, producing vibrant colors without the need for external dyes or pigments. Cholesteric liquid crystals are commonly used in reflective displays, such as e-paper and low-power screens, where energy efficiency and readability under sunlight are critical.
Their ability to reflect light selectively makes cholesteric crystals ideal for applications that require high visibility in various lighting conditions, including electronic signage and wearable devices.
The Role of Liquid Crystals in Displays
Liquid crystals revolutionized display technology, enabling the development of LCDs, which dominate the market for screens in devices like televisions, smartphones, and laptops. The ability of liquid crystals to control light polarization with precision has been the driving force behind this transformation.
Polarization of Light
One of the core principles of liquid crystal displays is their ability to manipulate the polarization of light. Polarized light waves vibrate in specific directions, and liquid crystals can change the polarization by rotating the light’s orientation. This control is achieved by adjusting the alignment of the liquid crystal molecules using electric fields.
This manipulation is critical for creating the images and colors seen on an LCD. By carefully controlling the polarization of light at each pixel, liquid crystals enable the precise display of text, graphics, and video.
Backlighting and Color Filters
Liquid crystals themselves do not emit light; they rely on backlighting to illuminate the display. A layer of LEDs provides uniform light across the screen, while color filters break this light into red, green, and blue components. The liquid crystals act as shutters, allowing varying amounts of light to pass through each filter.
By controlling the intensity of these primary colors at each pixel, LCDs can produce a full spectrum of colors, delivering vibrant and lifelike visuals. This combination of backlighting, color filters, and liquid crystal control is the foundation of modern high-resolution displays.
Energy Efficiency
One of the significant advantages of liquid crystal technology is its energy efficiency. LCDs consume minimal power compared to older display technologies like cathode ray tubes (CRTs). The low energy requirements of liquid crystals make them ideal for portable devices, where battery life is a critical factor.
This efficiency extends to emerging applications, such as reflective displays in e-readers, which consume even less power by utilizing ambient light instead of backlighting.
Beyond Displays: Applications of Liquid Crystals
E-Paper and Reflective Displays
Liquid crystals are essential in e-paper technology, which powers e-readers like the Kindle. These displays use cholesteric liquid crystals to reflect light, mimicking the appearance of ink on paper. The result is a screen that is highly readable in direct sunlight and consumes very little power.
E-paper displays are particularly valuable for portable devices where energy efficiency and readability are critical, offering a sustainable alternative to traditional backlit screens.
Smart Glass and Windows
Liquid crystals are used in smart glass technology, enabling windows to switch between transparent and opaque states in response to electric fields. This technology is widely used in privacy glass, adjustable-tint windows, and energy-efficient building designs.
Smart glass powered by liquid crystals allows users to control light and heat transmission dynamically, enhancing comfort and reducing energy consumption in residential and commercial spaces.
Optical Devices and Sensors
The precise control of light provided by liquid crystals makes them invaluable in optical devices such as tunable lenses, beam steerers, and phase modulators. Liquid crystal-based sensors are used to detect changes in temperature, pressure, and electric fields, offering accurate and reliable measurements for scientific and industrial applications.
The Future of Liquid Crystals
As technology evolves, liquid crystals continue to drive innovation in displays and beyond. Researchers are exploring new possibilities, such as foldable and flexible screens that use advanced liquid crystal materials. These developments promise to revolutionize the design of smartphones, tablets, and wearable devices.
Liquid crystals also have potential applications in emerging fields like augmented reality (AR) and virtual reality (VR), where lightweight, high-resolution displays are critical. Their unique properties ensure that liquid crystals will remain a cornerstone of cutting-edge technology for years to come.
Conclusion
Liquid crystals are a testament to the ingenuity of science, bridging the gap between the fluidity of liquids and the structure of solids. Their ability to manipulate light with precision has revolutionized the way we interact with technology, powering everything from smartphones to e-readers. Beyond displays, liquid crystals are opening doors to new innovations in smart materials, optics, and sustainable technologies.
By delving into the science behind liquid crystals, we gain a deeper appreciation for the invisible forces shaping our digital world. As research continues, liquid crystals will undoubtedly remain at the forefront of technological advancement, offering endless possibilities for transforming how we live, work, and connect.
